CLAD STEEL PLATE-Hot Rolled

CLAD STEEL PLATE-Hot Rolled is carbon steel as the base material, Stainless steel is the cladding material, and the two metals are formed by hot rolling High efficiency and energy saving materials. Products are widely used in stone Oil, chemical industry, salt industry, water conservancy and power industry, Laminated materials include austenite, ferrite or martensite Bulk and duplex stainless steel, nickel-based alloys (825, C-276) and pure titanium (TA1, TA2).

The base of the bimetallic composite is carbon steel, and the composite layer is a material with special physical and chemical properties, and a solid metallurgical bond is formed between the base and the composite layer.

The composite steel plate has both the basic mechanical properties and the special physical and chemical properties of the layer, the performance is good, and the cost is reduced by 40%-60%.

CLAD STEEL PLATE-Two manufacturing methods

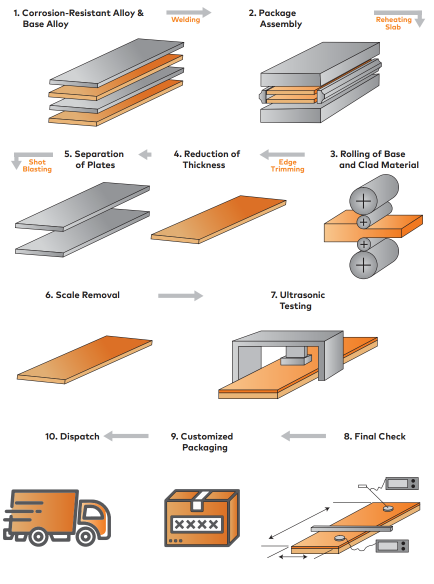

1.CLAD STEEL PLATE-Hot Rolled

The hot rolled composite plate process is made by rolling carbon steel substrate and stainless steel plate in a physically pure state under high vacuum conditions, and the two metals are diffused to achieve complete metallurgical combination in the rolling process.

2.CLAD STEEL PLATE-EXPLOSIVE CLAD

Explosive composite plate is the stainless steel plate overlapped on the carbon steel substrate, stainless steel plate and carbon steel substrate with a certain distance between the mat, in the stainless steel plate above the laying of explosives, the energy of explosive explosion makes the stainless steel plate high-speed impact on the carbon steel substrate, produce high temperature and high pressure to achieve solid combination of the interface of the two materials.

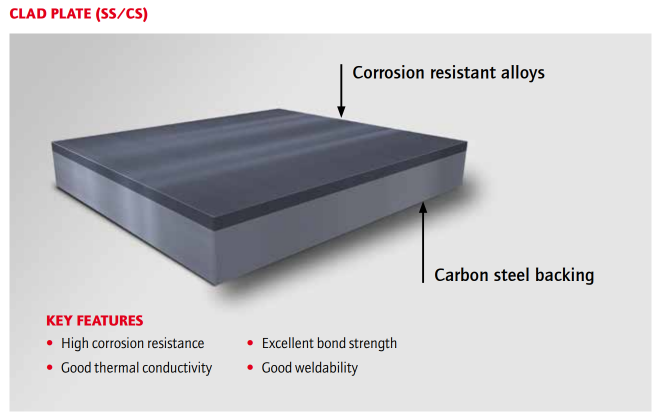

CLAD STEEL PLATE-SINGLE-SIDED

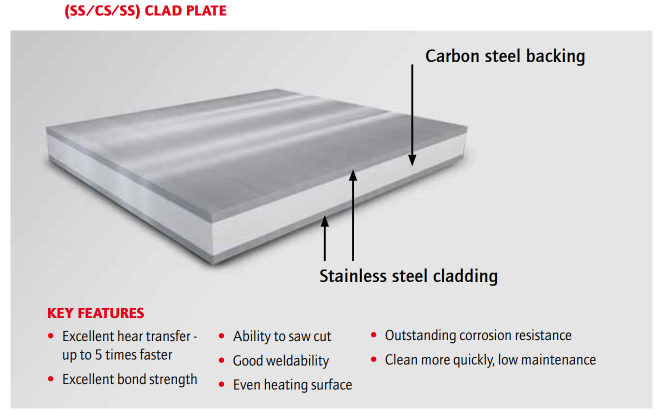

CLAD STEEL PLATE-DOUBLE-SIDED

CLAD STEEL PLATE-Scope of delivery specification

The application of clad steel plates will be widely promoted in the future.
