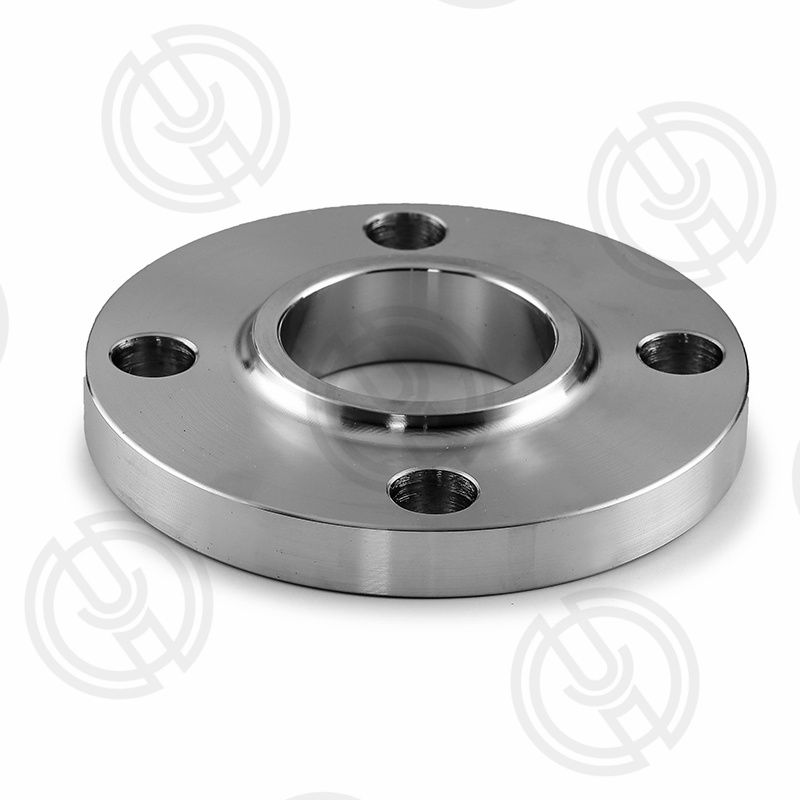

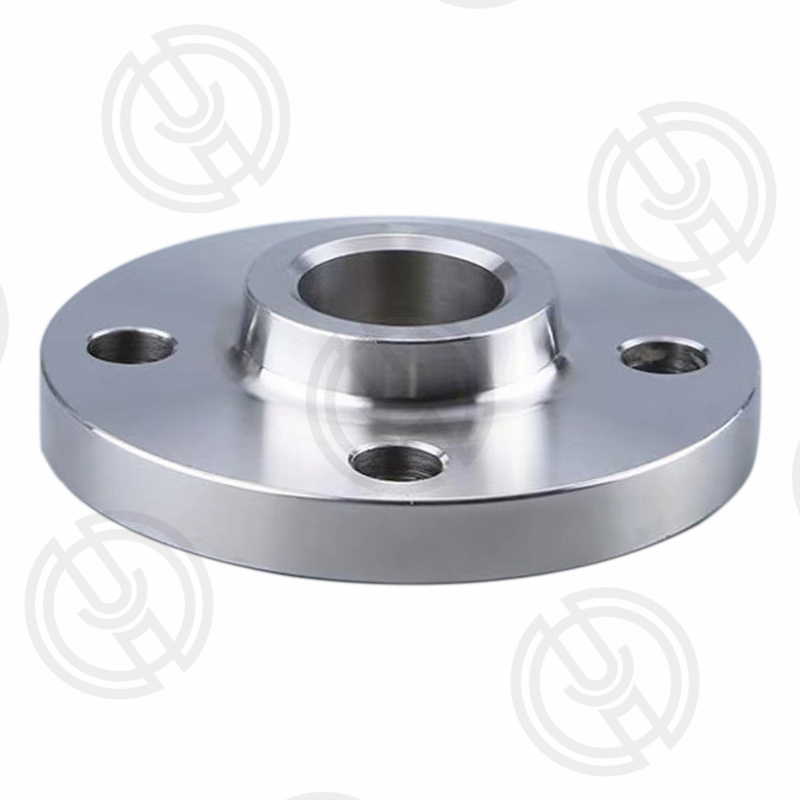

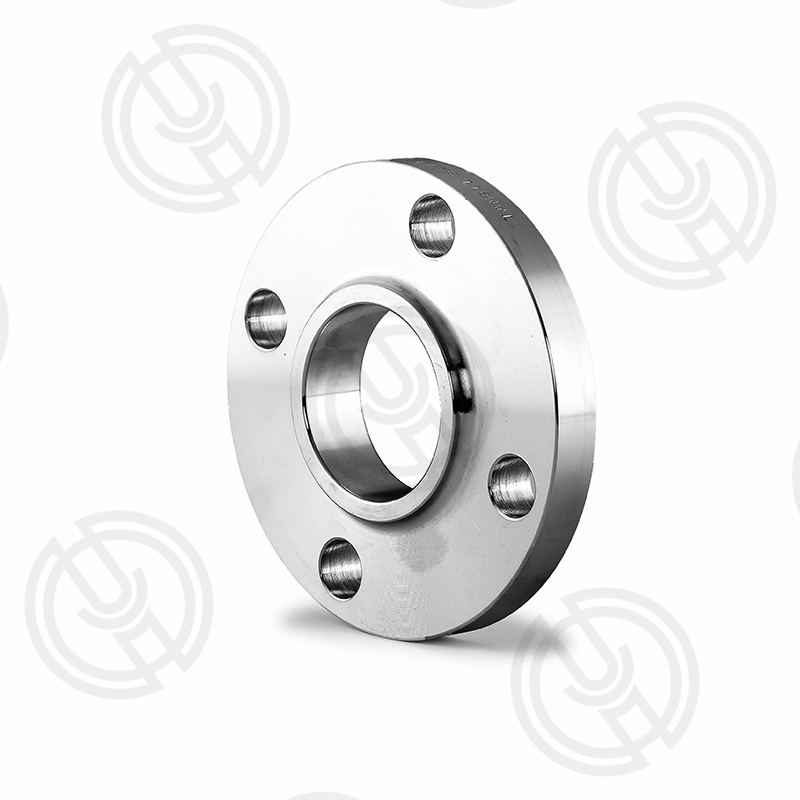

ASTM A694 F65 Flanges Carbon Steel Slip On Flange
ASTM A694 F65 Fanges is used for marine, oil and natural gas high-pressure pipeline, with high mechanical properties of H2S resistance,A694 F65 Flanges has strict requirements on heat treatment process.
ASTM A694 Grade F52, F60, F65,F70 Carbon Steel Flanges
Cangzhou Enfei Pipe Equipment Co., Ltd. is an excellent Carbon Steel ASTM A694 F65 Flanges manufacturer in China,The Carbon Steel ASTM A694 F65 Flanges is a product formed by high-temperature and high-pressure forging of the raw material metal round bar or steel plate.
Therefore, the Carbon Steel ASTM A694 F65 Flanges has high requirements for raw materials.
Whether the raw materials are high-quality determines the quality of the Carbon Steel ASTM A694 F65 Flanges products. Next, the Carbon Steel ASTM A694 F65 Flanges performance is determined by the heat treatment process.The Carbon Steel ASTM A694 F65 Flanges heat treatment temperature is generally between 700 and 1300 degrees Celsius. The heat treatment process determines the low-temperature impact resistance, high-temperature resistance, corrosion resistance Standard parameters such as welding performance and hardness.
As an excellent Carbon Steel ASTM A694 F65 Flanges manufacturer, Cangzhou Enfei Pipe Equipment Co., Ltd. selects raw materials produced by the best factories in China, including Yongxing special steel, AVIC Shangda, Huaxin Lihua, qingtuo group, Laiwu Iron and steel, Valin Iron and steel, Taiyuan Iron and steel, Shanghai Baosteel, Baosteel and other China’s best steel groups. The above raw material manufacturers have passed ABS and DNV GL, BV, LR, CCS, NKclass, KR, RINA and RS classification societies can issue EN10204 3.2 and EN10204 3.1 material list certificates.
Cangzhou Enfei Pipe Equipment Co., Ltd. focuses on serving global customers. Manufacturing standards include: ASME/ANSI B16.9, ASME/ANSI B16.47, ASME /ANSI B16.48, MSS SP44, ASA, API-605, AWWA, custom drawings DIN2527-DIN2673, EEMUA145 146 234, BS4504, BS1560, BS10, HG/T20592 HG/T20615, GB /T9115-GB/T9119, JIS B2220, JPI-7S-15, etc.
ASTM A694 Flanges products produced by Cangzhou Enfei Pipe Equipment Co., Ltd. have a variety of materials to choose from, including:ASTM A694 Grade F52, F60, F65,F70 .Product pressure 75LB 150LB 300LB 400LB 600LB 900LB 1500LB 2500LB DIN Standard PN-2.5,6,10,16,25,40,50,64,110,150,250,320,400, and product specification 1/8-72 inch to meet customers’ various choices.
Due to the high standard, good material and many specifications of Carbon Steel ASTM A694 F65 Flanges provided by our company, we are able to undertake many small, medium and large projects, coupled with our service attitude of resolutely considering for customers, which also makes our customers have a high rate of return. The contracts signed and delivered come from Europe, Africa, Asia, South America, North America, etc., with a wide range of customer coverage, and have won the unanimous praise of customers. Our company also keeps refining its products to meet the new issues raised in the new era while the rapid development of the times.
Industrial Steel Flanges Test Certificates: Cangzhou Enfei Pipe Equipment Co., Ltd. offer its Products with Third Party Inspection also. The Inspection Agency can be nominated by clients or Dynamic Forge & Fittings can be arrange the TPI by World reputed Agencies like Bureau Veritas, ABS, NKClass,SGS and many other.
ASTM A694 F65 Flanges Specification
| Size | 1/2〞（DN15）to 60〞(DN1500) | |||||

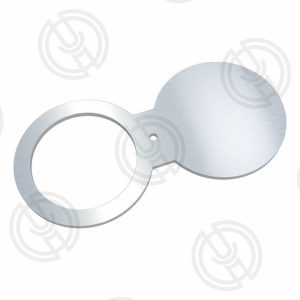

| Products | ASTM A694 F65 Slip-On Flanges,ASTM A694 F65 Weld Neck Flanges,ASTM A694 F65 Blind Flanges,ASTM A694 F65 Lap Joint Flanges,ASTM A694 F65 Ring Type Joint Flanges,ASTM A694 F65 Threaded Flanges, ASTM A694 F65 Socket Weld Flanges,ASTM A694 F65 Reducing Flanges,ASTM A694 F65 Plate Flanges, ASTM A694 F65 Forged Flanges,ASTM A694 F65 Square Flanges,ASTM A694 F65 Spectacle Blind Flanges | |||||
| Class | 150LBS,300LBS,400LBS,600LBS,900LBS,1500LBS,2500LBS. DIN Standard PN-2.5,6,10,16,25,40,50,64,110,150,250,320,400. | |||||
| Flange Face Type | Amerrican Series:Flat face(FF),Raised Face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring Joints Face(RJ) | |||||
| Surface Treatment | Antirust Paint,Oil Black Paint,Yellow Transparent,Zinc Plated,Cold and Hot Dip Galvanized | |||||
| Manufacturing process | Cutting,Heat treatment,Die Forging/Free Forging,CNC Machining | |||||
| Manufacturing Standards | ANSI/ASME B16.5 Flanges,ANSI/ASME B16.47 Flanges,ANSI/ASME B16.36 Flanges，ANSI/ASME B16.48 Flanges ，MSS SP44 Flanges,ASA,API-605 Flanges,AWWA Flanges,Custom Drawings Flanges ，EEMUA145 146 234 Flanges，BS 10 Flanges，DIN Flanges，EN 1092-1 Flanges，BS 4504 Flanges，JIS Standard Flanges | |||||
| Carbon Steel | ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70 | |||||
A694 F65 Carbon Steel Weld Flanges Chemical Composition
| Grade | C% | Mn% | Si% | S% | P% |
| F42 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F46 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F48 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F50 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F52 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F56 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F60 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F65 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
| F70 | 0.265 max | 1.44 max | 0.1-04 | 0.03 max | 0.03 max |
A694 F65 Flanges Tensile Properties Testing
A694 F65 Carbon Steel Weld Flanges Mechanical Properties And Tensile Requirements
| Grade | Tensile Strength, min, MPa [ksi] | Yield Strength (0.2 % Offset), min, MPa [ksi] | Elongation in 2 in. or 50 mm, min % |
| F42 | 415 (60) | 290 (42) | 20 |
| F46 | 415 (60) | 315 (46) | 20 |
| F48 | 425 (62) | 330 (48) | 20 |
| F50 | 440 (64) | 345 (50) | 20 |
| F52 | 455 (66) | 360 (52) | 20 |
| F56 | 470 (68) | 385 (56) | 20 |
| F60 | 515 (75) | 415 (60) | 20 |
| F65 | 530 (77) | 450 (65) | 20 |
| F70 | 565 (82) | 485 (70) | 18 |
