Nickel 200/201 Flanges | ASTM B/SB564 UNS N02200/N02201 Flanges
Nickel 200/201 Flanges as per ASME/ANSI B16.5 in Types of Welding Neck Flange, Socket Weld Flange, Slip On Flange, Blind Flange, Threaded Flange, Lap Joint Flange, Long Neck Weld Flanges, Orifice Flanges, Spectacle Blind Flanges, Swivel Flange, Jacketed Flanges etc. Certified in China EN10204 3.1 EN10204 3.2 .
NICKEL WERKSTOFF NR. 2.4066/2.4068 FLANGES, NICKEL UNS N02200/N02201 FLANGES, ASTM B564 NICKEL ALLOY FLANGES, NICKEL 200 FLANGES EXPORTER, NICKEL 201 FLANGES, NICKEL ALLOY 200/201 FLANGES SUPPLIER.
Nickel 200/201 Flanges Manufacturer, Supplier, Stockholder in China.
▶What is Nickel 200/201 Flanges
▶Standard Specification For Nickel 200/201 Flanges
▶Types Of Nickel 200/201 Flanges
▶Nickel 200/201 Welding Neck Flange
▶Nickel 200/201 Socket Weld Flange
▶Nickel 200/201 Slip On Flange
▶Nickel 200/201 Blind Flange
▶Nickel 200/201 Threaded Flange
▶Nickel 200/201 Lap Joint Flange
▶Nickel 200/201 Long Neck Weld Flanges
▶Nickel 200/201 Orifice Flanges
▶Nickel 200/201 Spectacle Blind Flanges
▶Nickel 200/201 Swivel Flange
▶Nickel 200/201 Jacketed Flanges
Cangzhou Enfei Pipe Equipment Co., Ltd. is a manufacturer specializing in the production of Nickel 200/201 Flanges| ASTM B564 UNS N02200/N02201 Flanges .

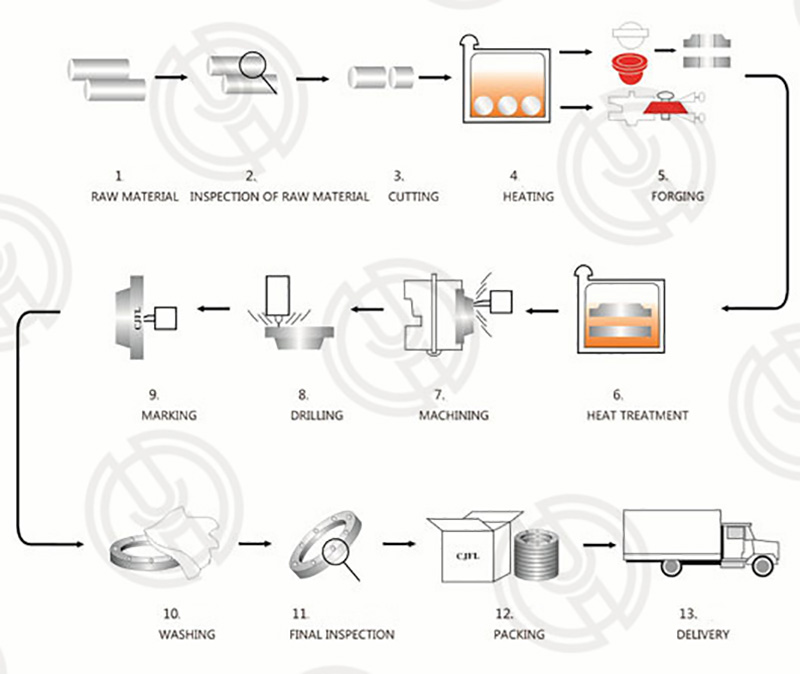

The Nickel 200/201 Flanges we produce are mainly made of steel rod and steel plate through high pressure forging production process, and then the finished products are manufactured through heat treatment, grinding and polishing, pickling and shot blasting.
The manufacturing standards of Nickel 200/201 Flanges produced by us include: ASME/ANSI B16.9, ASME/ANSI B16.47, ASME /ANSI B16.48, MSS SP44, ASA, API-605, AWWA, custom drawings DIN2527-DIN2673, EEMUA145 146 234, BS4504, BS1560, BS10, HG/T20592 HG/T20615, GB /T9115-GB/T9119, JIS B2220, JPI-7S-15, etc.
Nickel 200/201 Flanges products produced by Cangzhou Enfei Pipe Equipment Co., Ltd. have a variety of materials to choose from, including: Nickel 200、2.4066、UNS N02200、N-100M、НП-2、NW 2200、NA 11、Ni 99.2、Nickel 201、2.4068、UNS N02201、NW 2201、NA 12 、LC-Ni 99 produced by Cangzhou Enfei Pipe Equipment Co., Ltd. needs to undergo strict testing before it can be delivered to the customer with permanent steel seal.
In addition, the raw materials for manufacturing Nickel 200/201 are the products of the most excellent steel rod and steel plate manufacturers in China.
The raw material purchasers include Shanghai Baosteel, Valin steel, Tianjin seamless steel, Baotou Steel, Taiyuan Steel, Zhejiang Yongshang,Jiangsu Wujin,and internationally renowned raw material manufacturers SMC,ATI,VDM,Carpenter Technology Corporation,Imphy Alloys,Hitachi,Nippon YAKIN.
The raw material standards are ASTM B564 / ASTM SB 564, etc.Product pressure 75LB 150LB 300LB 400LB 600LB 900LB 1500LB 2500LB DIN Standard PN-2.5,6,10,16,25,40,50,64,110,150,250,320,400, and product specification 1/8-72 inch to meet customers’ various choices.
After years of customer accumulation and cooperation, Cangzhou Enfei Pipe Equipment Co., Ltd. has sent its products to North America, South America, Australia, the Middle East, Europe, South Korea and Japan.
Industrial Nickel 200/201 Flanges Test Certificates: Cangzhou Enfei Pipe Equipment Co., Ltd. offer its Products with Third Party Inspection also. The Inspection Agency can be nominated by clients or Dynamic Forge & Fittings can be arrange the TPI by World reputed Agencies like Bureau Veritas, ABS, SGS and many other.
Nickel 200/201 Flanges Specification
| Size | 1/2〞（DN15）to 60〞(DN1500) | |||||
| Class | 300LBS,400LBS，600LBS,900LBS,1500LBS | |||||
| Flange Face Type | Amerrican Series: Ring Joints Face(RJ) | |||||
| Surface Treatment | Antirust Paint,Oil Black Paint,Yellow Transparent,Zinc Plated,Cold and Hot Dip Galvanized | |||||
| Manufacturing process | Cutting,Heat treatment,Die Forging/Free Forging,CNC Machining | |||||
| Manufacturing Standards | ASME B16.5, B16.47, API 17D, MSS SP-44 | |||||
NICKEL 200/201 FLANGES CHEMICAL COMPOSITION
| Grade | C | Mn | Si | Cu | S | Mg | Ni | Ti | Fe |
| Nickel 200 | 0.15 max | 0.35 max | 0.1 max | 0.25 max | 0.01 max | – | 99.0 min | – | 0.4 max |
| Nickel 201 | 0.02 max | 0.35 max | 0.2 max | 0.25 max | 0.01 max | 0.15 max | 99.0 min | 0.1 max | 0.4 max |
NICKEL ALLOY 200/201 FLANGES MECHANICAL PROPERTIES
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45% |
NICKEL 200/201 FLANGES EQUIVALENT GRADE
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | GOST | JIS | BS | EN | OR |
| Nickel 200 | 2.4066 | N02200 | N-100M | НП-2 | NW 2200 | NA 11 | Ni 99.2 | – |
| Nickel 201 | 2.4068 | N02201 | – | НП-2 | NW 2201 | NA 12 | LC-Ni 99 | – |
Nickel 200/201 FLANGES RAW MATERIAL STANDARD
| Trade Name | Nickel 200 | Nickel 201 |
| UNS # | N02200 | N02201 |
| Seamless Pipe / Tube | B/SB161, B/SB163 | B/SB161, B/SB163 |
| Welded Pipe / Tube | B725, B474, B730 | B725, B474, B730 |
| Buttweld Fittings* | B/SB366 | B/SB366 |
| Grade | Grade | |
| WPN | WPNL | |
| Forged Valves | B/SB564 | B/SB160 BAR |
| B/SB160 BAR | ||
| Forged Fittings | B/SB564 | —– |
| Flanges | B/SB564 | —– |
| Cast Steel Valves | A/SA494 | —– |
| UNS N02100 | ||
| Grade | CZ100 | —– |
| Plate | B/SB162 | B/SB162 |
Nickel 200/201 Flanges Tensile Properties Testing
Heat treatment of Nickel 200/201 Flanges
Nickel 200/201 Flanges packaging and delivery
NOTE: The Nickel 200/201 Flanges is a kind of combined flange, which needs to be manufactured according to the field usage. It is recommended to consult us before ordering.
